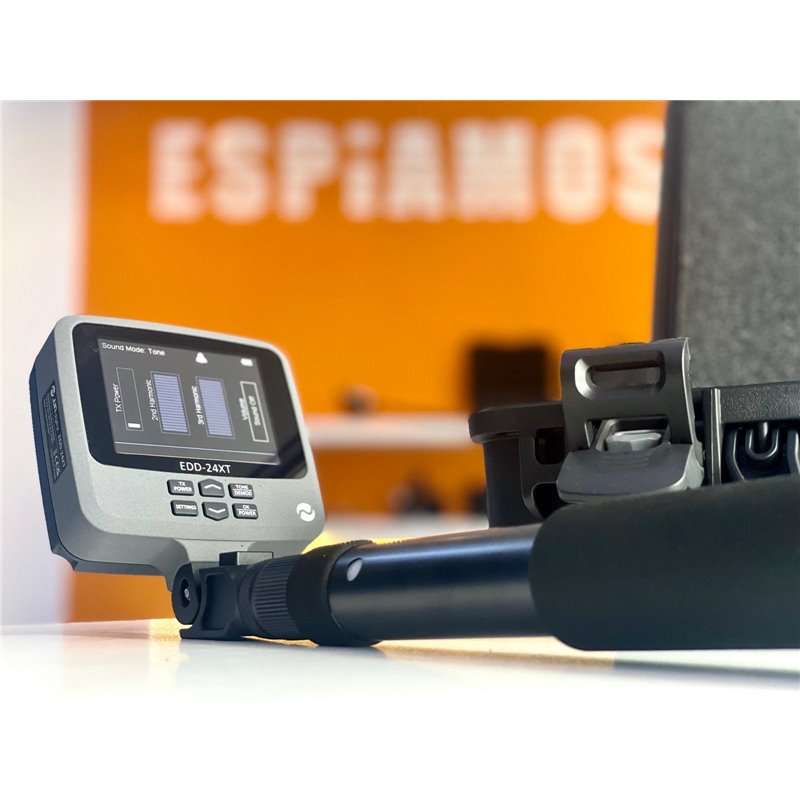

EDD-24XT Non-Linear Joint Detector with Extension Rod

EDD-24XT Non-Linear Joint Detector with Extension Rod

The EDD-24XT is an advanced Non-Linear Junction Detector (NLJD) designed to locate hidden electronic devices, whether they are active, passive, or completely turned off. Thanks to its adjustable extension rod , which can be extended up to 140 cm, this device is ideal for inspecting hard-to-reach areas such as high ceilings, hidden walls, or office corners. It is designed to deliver accuracy in detecting hidden threats in all types of high-security environments such as government facilities, corporate offices, vehicles, and more.

The EDD-24XT detects semiconductor circuits, present in all modern electronic devices. This allows it to locate covert surveillance equipment such as spy cameras, voice recorders, GSM microphones, GPS, tracking devices, SIM cards and much more. The detector is able to detect these devices regardless of their power state, whether they are active, in standby mode or turned off, providing an extra layer of security in any inspection.

How Does the EDD-24XT Work?

The EDD-24XT emits high-frequency directional signals. When these signals pass over silicon circuits, used in all semiconductor devices, they generate a strong second harmonic frequency. Other materials, such as oxidized metals or bimetals, generate a third harmonic. The EDD-24XT transmits at a frequency of 2.4 GHz and picks up reflected signals at 4.8 GHz for second harmonics, and at 7.2 GHz for third harmonics. Even the smallest pieces of silicon, such as a NANO SIM card, can be detected up to 20 cm away.

The device offers a clear and simple display on its 3.5-inch colour TFT screen , which shows the detected signal strength in a bar graph, categorised as either 'Silicon' or 'Metal', allowing for a quick and accurate assessment. Additionally, it features auditory feedback which can be heard via the internal speaker or supplied headphones. In audible tone mode, the device emits a tone when it detects the second harmonic, with the pitch changing depending on the signal strength. In demodulation mode, you can also listen to the demodulated signal directly from the second harmonic receiver.

EDD-24XT Highlights

• Detection of electronic devices in any state: Locate all types of electronic devices, whether they are on, standby or off.
• Adjustable Extension Wand: Extends up to 140cm to reach hard to reach areas.
• Signal Category: Detects signals from silicon (electronic components) or metal, clearly showing the detected materials.
• NANO SIM Card Detection: Capable of locating SIM cards from a distance of up to 20 cm.
• Up to 4.5 hours of battery life: Provides continuous use during extended inspections.
• Lightweight and portable design: Weighs less than 1 kg, making it easy to transport and use in the field.
• Auditory Feedback: Allows you to listen to the detected signal through headphones or the internal speaker.

Operation with Extendable Rod and Adjustable Head

The EDD-24XT includes an adjustable aluminum wand that can be extended from 30 cm to 140 cm, ideal for scanning high or hard-to-reach areas. The head can also be adjusted to five viewing angles within a 90-degree range, allowing a clear view of the screen to be maintained during inspections.

Real-Time Detection with Auditory Feedback

During inspections, the EDD-24XT provides real-time audible alerts via the internal speaker or supplied headphones. The audible tone changes its pitch based on signal strength, making it easy to search without having to constantly look at the screen. In demodulation mode, you can listen to the demodulated signals, providing additional information about detected devices.

Portability and Durability

Weighing less than 1kg and featuring a built-in lithium polymer battery that offers up to 4.5 hours of continuous use, the EDD-24XT is highly portable and comfortable to handle for extended periods of time. Additionally, the set includes 200g counterweights that can be added to the base of the rod to improve balance and comfort during extended use. All equipment is stored in a military-grade carrying case , designed to protect the device during transport and ensure its durability under demanding conditions.

EDD-24XT Technical Specifications

• Transmission frequency: 2.400 GHZ to 2.425 GHz (ISM band)
• Transmit power levels: Up to +30dBm (1 Watt)
• Display: 3.5-inch daylight-visible color TFT
• Receiver Sensitivity: Better than -120dBm at 2nd and 3rd harmonics
• Battery life: Up to 4.5 hours of continuous use
• Weight: 870g (main unit with rod installed)
• Dimensions with rod installed: 450mm x 110mm x 47mm
• Carrying Case: Military Standard, 363mm x 282mm x 120mm

EDD-24XT Package Contents

• EDD-24XT Portable Electronic Device Detector
• Aluminum extension rod
• 2 x 200g counterweights
• Charger with international adapters
• Headphones
• Military grade protective carrying case
