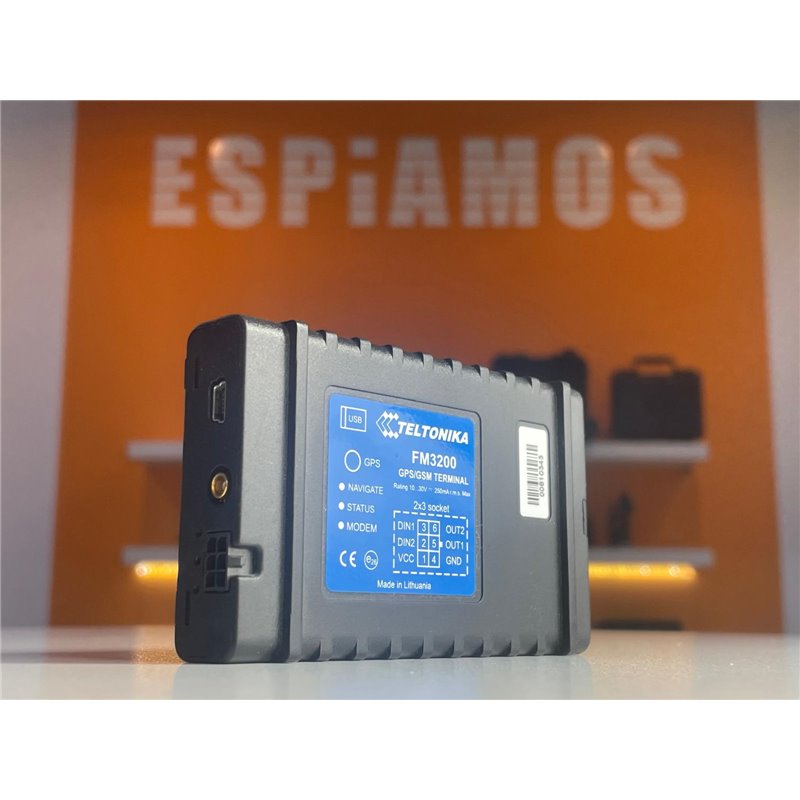

GPS locator FM3200 Teltonika

FM3200 is a lightweight handset with connectivity, GPS and GSM, that is able to obtain the coordinates of the device, and other data and transfer them via the GSM network. This device is perfectly suitable for applications where the acquisition of location of remote objects. This way, you can track your remote objects (trucks, cars, ships etc) quickly and easily.

FM3200 can perform tasks on remote objects, such as monitoring engine status, controlling the door of the truck, etc

In case of loosing connection FM3200 can store up to 15000 records, and once the connection is established, the device will send stored data via GPRS. So do not lose your data (coordinates, sensor data, etc)



Technical specifications of the GPS LOCATOR FM3200 Teltonika

• Data acquisition of GPS and E/S
• Real-time tracking
• Smart algorithm of data acquisition (based on time, distance and event)
• Sending acquired data via GPRS (TCP/IP and UDP/IP)
• Smart algorithm of connections (GPRS traffic saving GPRS)
• Operate in networks of roaming (list of suppliers of GSM preferred)
• Events in the detection of I/O and sending via GPRS or SMS
• Scheduled 24 coordinates SMS sending
• 5 areas of geoferencia (rectangular or circular)
• Standby mode (saving battery of the vehicle)
• Internal rechargeable battery of reserve NiMh 300 mAh
• OTA (firmware update over GPRS)
• Motion Sensor
• Small and easy to mount case
• Applications
• Security Tracking and follow-up Assistance in road toll Collection Insurance

TECHNICAL DETAILS
GSM
Dual band 900/1800 MHz

GPRS class 10 (up to 85,6 kbps)

SMS (text/data)

GPS

Compatible with the protocols NMEA, GGA, GGL, GSA, GSV, RMC, WGS-84.

GPS receiver 50 channels

Sensitivity of -160dBm

Interface

ENTRIES:
2 digital inputs (for monitoring of the door opening, panic button or other digital sensors)
2 pins for power supply can measure the voltage of the vehicle battery (analog) and (in most cases) engine start (generating a higher voltage on vehicle's battery)
Inputs (data) virtual:
distance traveled (odometer, GPS);
control of the speed of the vehicle
2 digital outputs
Power supply +10V...+30V
3 status LEDs
USB port
Configuration and firmware upload
GSM antenna internal
External GPS antenna
