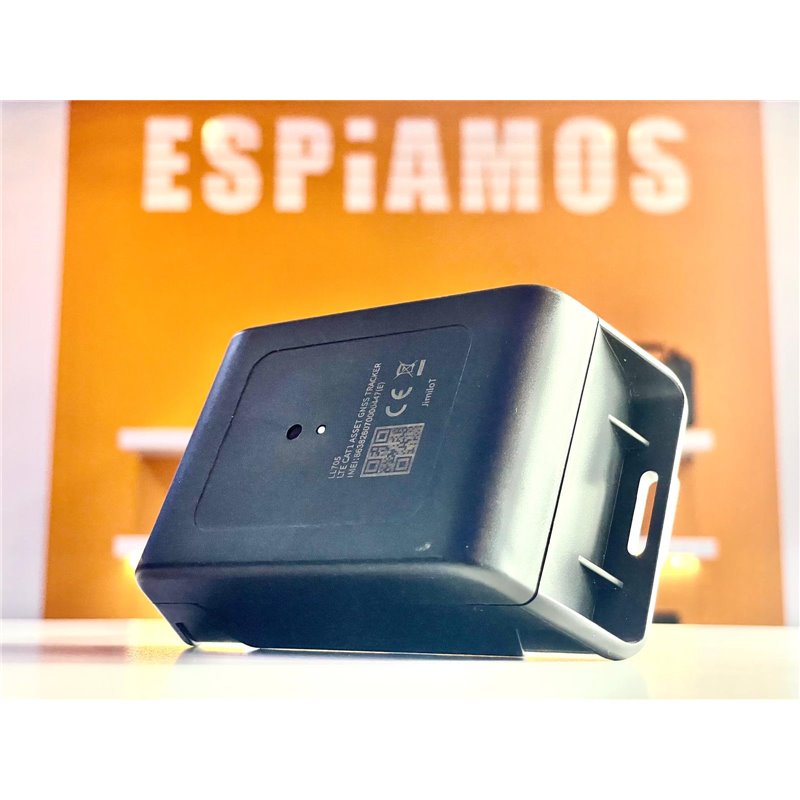

Mini GPS Locator LTE 4G 10 Years Autonomy

The high-autonomy 4G LTE mini GPS tracker is an advanced solution for monitoring valuable assets such as construction equipment and heavy machinery . This device stands out for its impressive 18,000mAh battery , which allows it to operate for up to 10 years without needing to be recharged , making it ideal for assets that require long-term tracking. Its robust, water and dust resistant design, with IP67 certification, guarantees optimal performance even in harsh environments.

With a combination of GPS, BDS, LBS and Bluetooth , this tracker offers precise location tracking, while its installation is flexible, allowing it to be fixed using screws, internal magnets, 3M adhesive tape or cable ties . In addition, it includes tampering and low battery alerts to ensure continuous monitoring without interruptions.

Main Features of the Mini 4G LTE GPS Tracker

• 18,000mAh Battery : Thanks to its large capacity, this tracker can operate for up to 10 years , making it ideal for tracking assets that remain stationary for long periods or in hard-to-reach places.

• Multiple Positioning : Combines GPS, BDS, LBS and Bluetooth technologies, enabling accurate real-time tracking and ensuring asset location is visible on the cloud platform.

• Tamper Alert : The device features a light sensor that detects any tampering attempts. If someone tries to remove or move the tracker, you will receive an immediate alert so you can take the necessary measures.

• IP67 Resistance : Designed to operate in the most demanding environments, the locator is water and dust resistant , ensuring its operation in extreme conditions , such as on construction sites or in adverse climates.

• Flexible Installation : The tracker can be installed in multiple ways, using screws, an internal magnet, 3M double-sided adhesive tape or cable ties , making it easy to attach to any type of asset.

• Configurable Operating Modes : The device allows you to adjust the working modes according to the specific needs of the operation, optimizing battery use and adapting to different working conditions.

Technical Specifications

• Networks : LTE Cat M1_NB2 and GSM with support for 4G LTE and 2G communications.
• Positioning : GPS, BDS, LBS and Bluetooth, offering precise and constant location.
• Battery : 18,000mAh, with a lifespan of up to 10 years depending on the operating mode.
• Durability : IP67 certified, water and dust resistant for demanding environments.
• Alerts : Includes tamper alerts and low battery alerts when the power level drops below 20%.
• Installation : Can be fixed using screws , internal magnet, 3M adhesive tape or cable ties.
• Operating Modes : Configurable to adapt to operational needs.

Examples of Use

1. Construction Equipment Monitoring : The mini 4G LTE GPS tracker is ideal for tracking the location of heavy machinery on construction sites. Its long-lasting battery and resistance to adverse weather conditions ensure that the equipment is always under control.

2. High Value Asset Protection : For assets that need to remain stationary for long periods, this tracker is perfect. You can rest easy knowing your assets are being monitored without having to constantly recharge the device.

3. Agricultural Machinery Tracking : Agricultural equipment operating in large or remote areas can benefit from this GPS tracker thanks to its wide coverage and durability, ensuring its continuous operation regardless of environmental conditions.

Conclusion

The high-autonomy 4G LTE mini GPS tracker is an advanced tracking solution designed to ensure the safety and continuous surveillance of valuable assets. With its long battery life and installation flexibility, it is ideal for sectors such as construction, agriculture and fleet management , providing accurate tracking for years without the need for frequent maintenance.

Technical Specifications of the Mini High Autonomy 4G LTE GPS Locator

Positioning and Location

• Positioning Systems : GPS, BDS, LBS
• Accuracy : Less than 2.5m CEP
• Tracking Sensitivity : –165dBm
• Acquisition Sensitivity : –148dBm
• Time to First Fixation (TTFF) :
  • Hot start (open sky): ≤1 second
  • Cold start (open sky): ≤32 seconds

Cellular

• Communication Network : LTE Cat 1, GSM
• Supported Frequencies :
  • LTE-FDD: B1/B3/B5/B7/B8/B20/B28
  • LTE-TDD: B34/B40/B41
  • GSM: 850/900/1800/1900MHz

Feeding

• Battery : 18,000mAh Li-SOCl2 batteries (non-rechargeable)
• Operating Modes :
  • Mode 1: Continuous tracking mode
  • Mode 2: Timing mode
  • Mode 3: Alarm-based mode
  • Mode 4: Time period mode
• Battery Life : From 8 days to 10 years, depending on the mode of use

Interface

• LED Indication : Power (Green)
• SIM card : Nano-SIM
• Memory Capacity : 1000 GPS data entries
• Tamper Proof : Built-in light sensor
• GNSS Antenna : Internal
• Bluetooth Antenna : Internal

Additional Features

• Sensors : Accelerometer and light sensor
• Alert Scenarios :
  • Low battery alert
  • Tampering alert
  • Vibration alert
  • Geo-fence entry/exit alert
• Bluetooth : BLE 4.2

Assembly and Configuration

• Mounting Methods : Internal Magnet or Screws
• Configuration Support : Via SMS, online command or mobile app
• Certifications : CE

Operating Environment

• Operating Temperature : –20℃ to +60℃
• Operating Humidity : 5% to 95%, non-condensing
• IP Rating : IP67, dust and water resistant

Physical Specifications

• Dimensions : 120.0 x 68.0 x 43.5mm
• Weight : 289.0g
